Filtros de auto-limpeza automáticos de escova de metal com caixa de alimentação à prova de EX
Flanged Inlet/Outlet Connection Automatic Self Cleaning Filters with EX-proof Power Box Product Description Internal Scraping Self-cleaning Filter Lehler internal scraping self-cleaning filter (LFN series filter) blends modern technology with simplicity to provide a versatile method of filtering your provide a versatile method of filtering your process fluids.The filter can be set up for automated or manual operation. Working principle Liquid enters the filter body from inlet
Brand Name:
Lehler
Model Number:
LFN-D400
Product Details
Destacar:
Filtros automáticos de autolimpeza Metal Brush
,EX Filtros de autolimpeza automáticos à prova de cor
,Filtro de auto-limpeza Metal Brush
Brush:
Pincel de metal
Service:
OEM
Power Box:
Ex-prova
Element:
Elemento do fio da cunha
Slot Opening:
150 mícrons
Inlet/Outlet Connection:
De fibras sintéticas
New Application:
Dimensões para moinhos de papel
Surface Finish:
Polonês do espelho
Product Description
Detailed Specifications & Features
Conexão de entrada/saída de flange Filtros automáticos de autolimpeza com caixa de alimentação à prova de EX
Descrição do produto
InternoFiltro de autolimpeza de raspagem
Princípio de funcionamento
O líquido entra no corpo do filtro a partir da entrada e flui através do elemento do filtro de dentro para fora.O motor redutor impulsiona a lâmina raspadora para remover a impureza continuamenteA limpeza ocorre sem interrupção para o fluxo por rotação do elemento contra lâminas fixas de raspador.A impureza acumulada durante a rotação é depositada no fundo do corpo do filtro, de onde pode ser periodicamente descarregada automaticamente através da saída de drenagem.
Características técnicas e vantagens
Nenhum material de consumo descartável:A poupança de custos dos meios de filtragem e dos custos ambientais
Estrutura de aço inoxidável:Materiais diversos, prevenção da corrosão e ferrugem
Abertura da ranhura de alta precisão: Min. Ranhura de 20 microns
Alto grau de automação:Pode trabalhar em linha continuamente, sem limpeza manual frequente

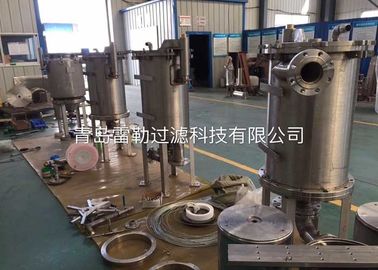

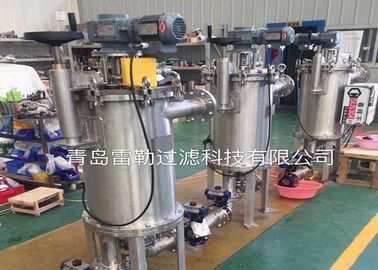

Processo produtivo
Aplicação
Controle de qualidade e entrega
Caixa de madeira compensada para embalagem de exportação
Exposição
Certificações
